High-Capacity Commercial ESS Solution

All-in-one design with <20ms seamless switching for uninterrupted C&I power.

Technical Specifications

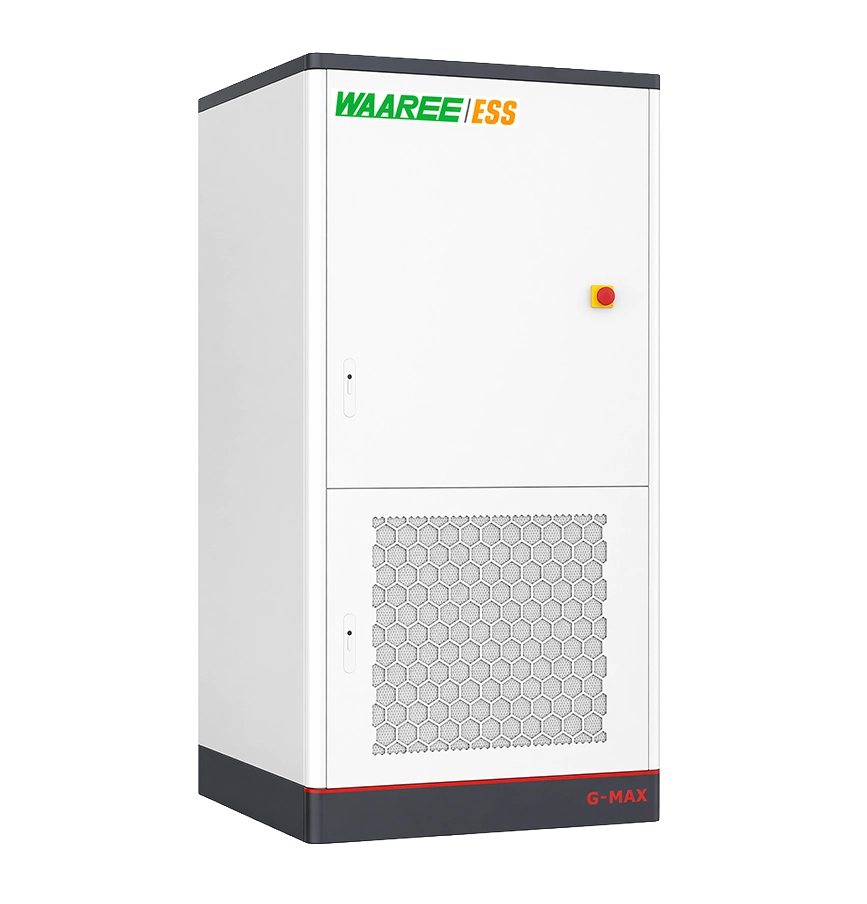

The G-MAX is an all-in-one C&I solution integrating an LFP battery, PCS, and intelligent safety systems in one standard container, ensuring simple installation.

  • All-in-one design integrating battery, PCS, BMS, and safety into one container.
  • High round-trip efficiency is reliably greater than 89%.
  • IP67 protection level for the internal battery pack.
  • Peak output power up to 110 kW with a rated power of 100 kW.
  • Compartmentalised design with a preventive alarm system for safety.
  • Remote monitoring via Wi-Fi, 4G, or 5G connection to the cloud.
High Power Quality

High Power Quality

Low THDI (<3%) and Power Factor >0.99 ensure clean power delivery to the load.

Wide Voltage Range

Wide Voltage Range

Supports a wide operating voltage range (672V to 876V) for stable operation.

Smart Control

Smart Control

Offers advanced control protocols like ModBusTCP, CAN, and RS485 for industrial integration.

Efficient Cooling

Efficient Cooling

Features an integrated heat dissipation management system for stable component temperatures.

Applications and Use Cases

Designed for large-scale C&I use, the G-MAX maximises financial returns via intelligent peak shaving and frequency regulation, while reliably integrating solar, grid, and generator sources.
