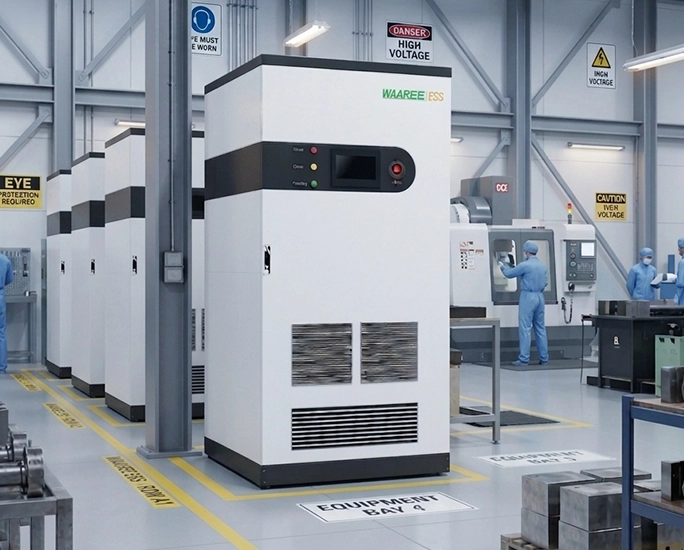

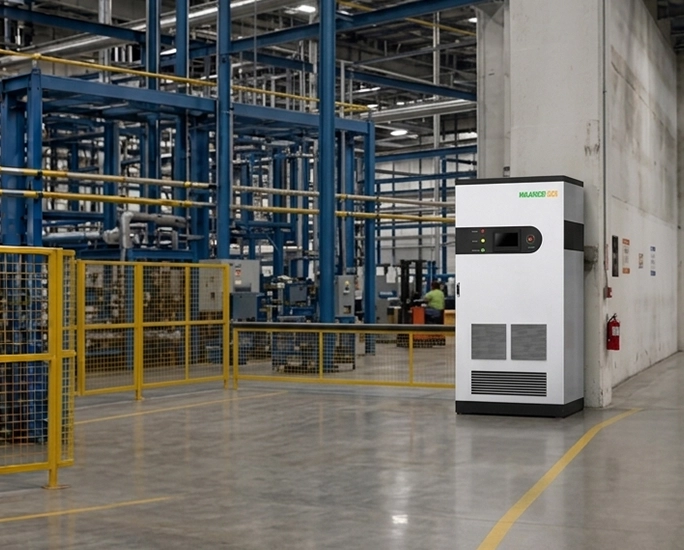

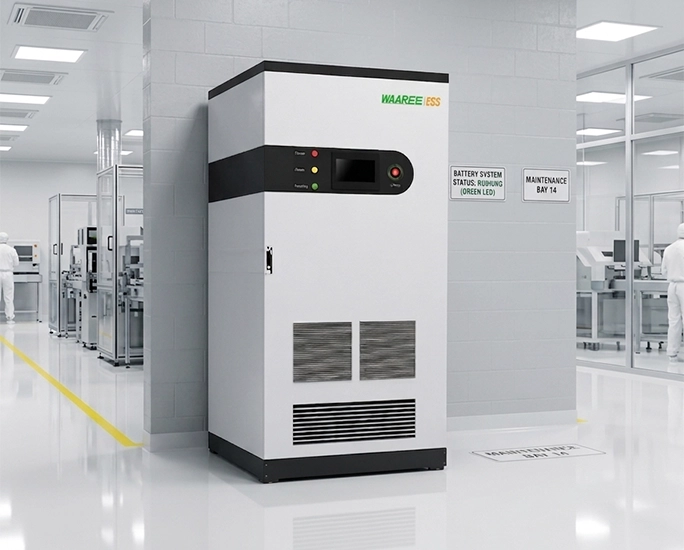

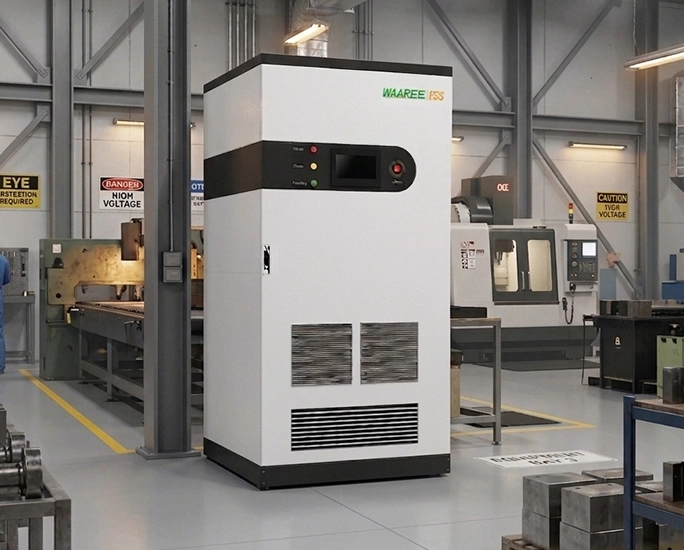

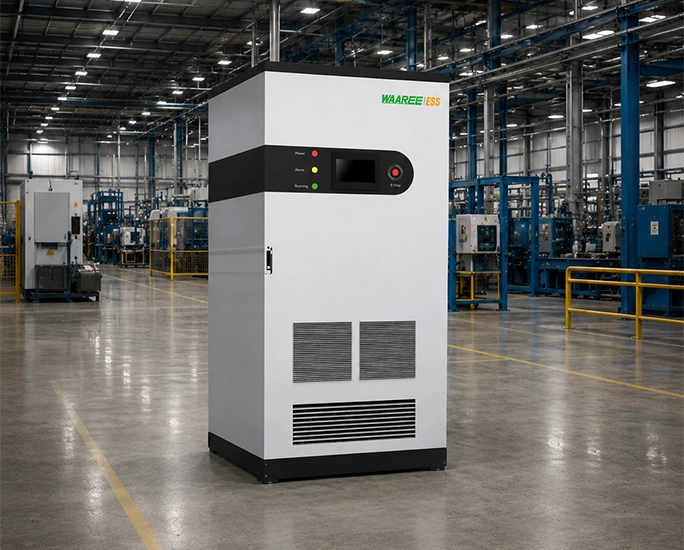

High-Capacity Commercial ESS Solution

All-in-one design with <20ms seamless switching for uninterrupted C&I power.

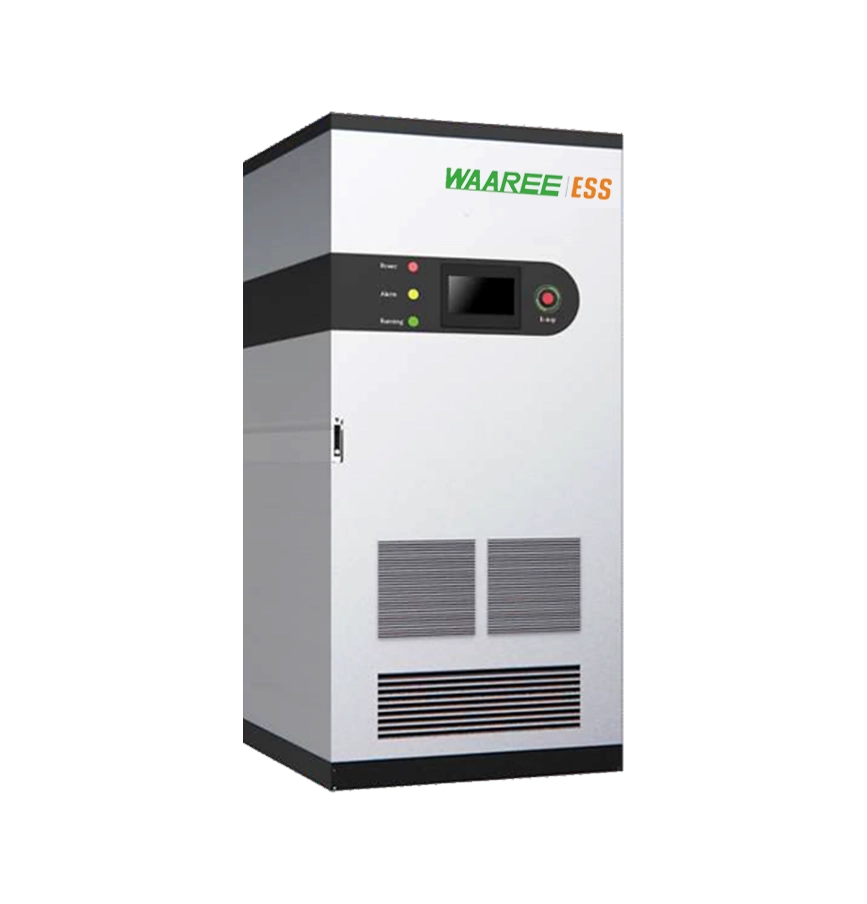

Technical Specifications

A highly efficient 100kW/215kWh ESS featuring full liquid cooling, smart BMS/EMS, and the capacity to support multi-machine parallel scaling.

Full liquid cooling ensures stable thermal control for maximum lifespan.
Seamless switching (on/off-grid) time is reliably less than 20ms.
Integrated MPPT module allows flexible and scalable PV system adaptation.
Multi-level warnings and pack-level fire protection integrated.
Self-developed BMS & EMS for a customised energy management strategy.
Wide operating temp range of -20°C to 55°C.

8000 Cycle Life

Utilises high-cycle LFP cells for a guaranteed lifespan of >8000 cycles at 70% End-of-Life.

High IP Rating

Cabinet offers robust IP54 protection against dust and water ingress for all outdoor installations.

LFP Cell Safety

Built with Prismatic LFP cell chemistry, delivering enhanced thermal stability and zero cobalt risk.

Low Noise Output

Features <75dB noise emission, making it suitable for noise-sensitive C&I environments.

Applications and Use Cases

Maximise profitability across C&I sectors. This 100kW/215kWh solution is key for demand charge management, seamless PV self-consumption, grid stability services, and essential microgrid backup power.
