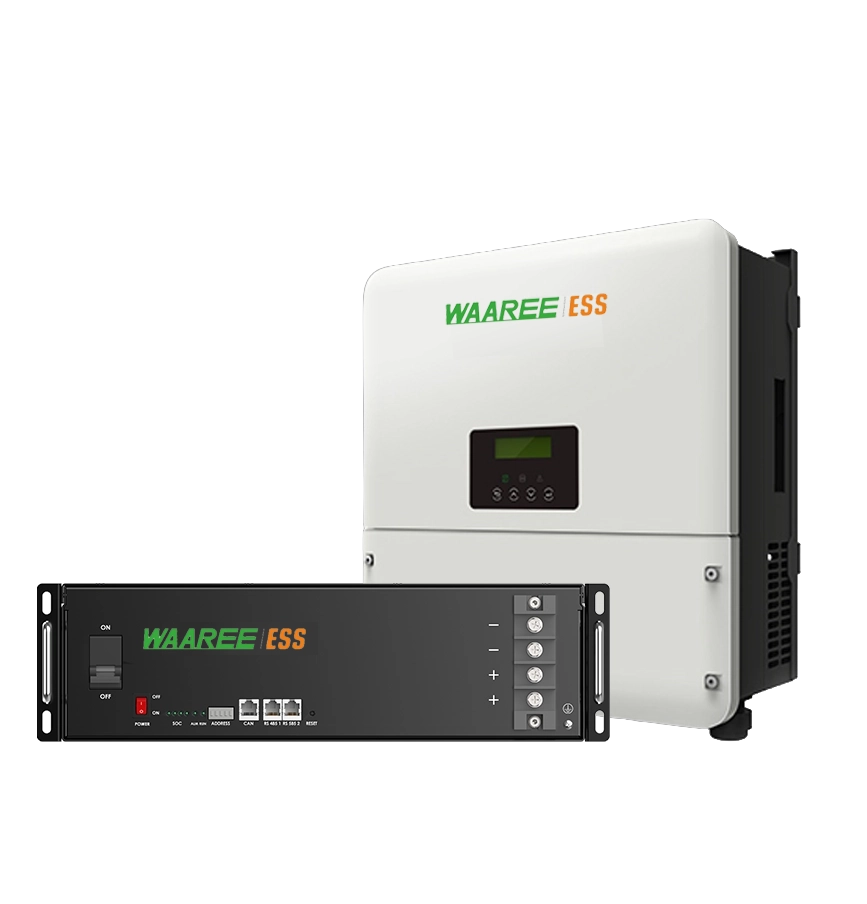

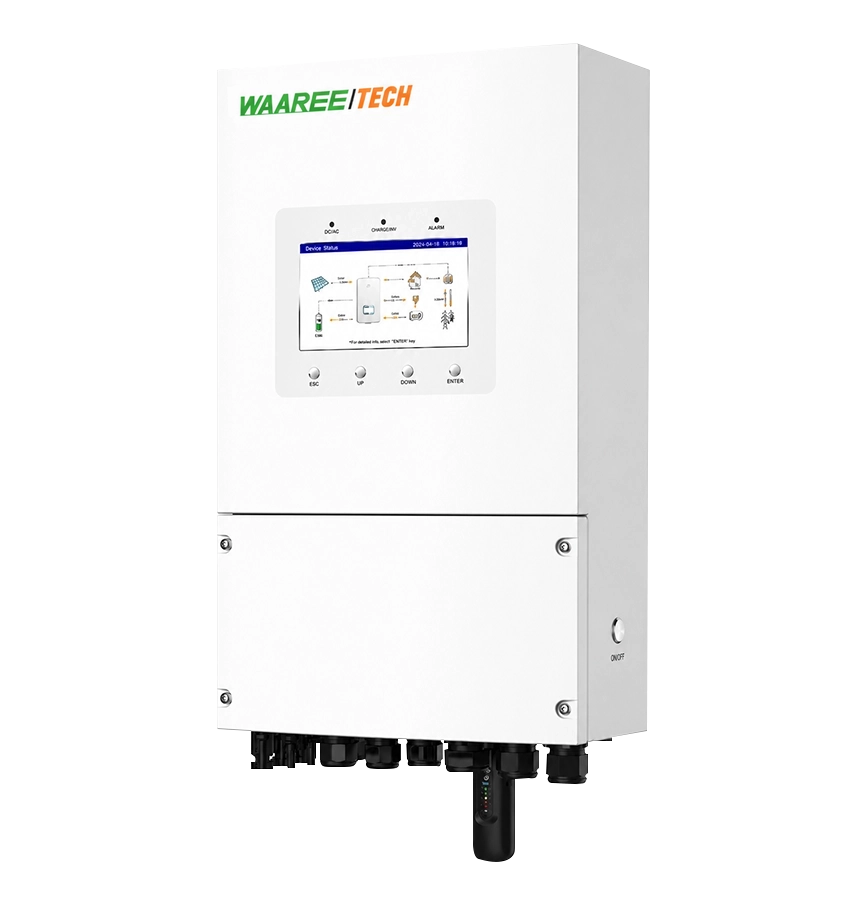

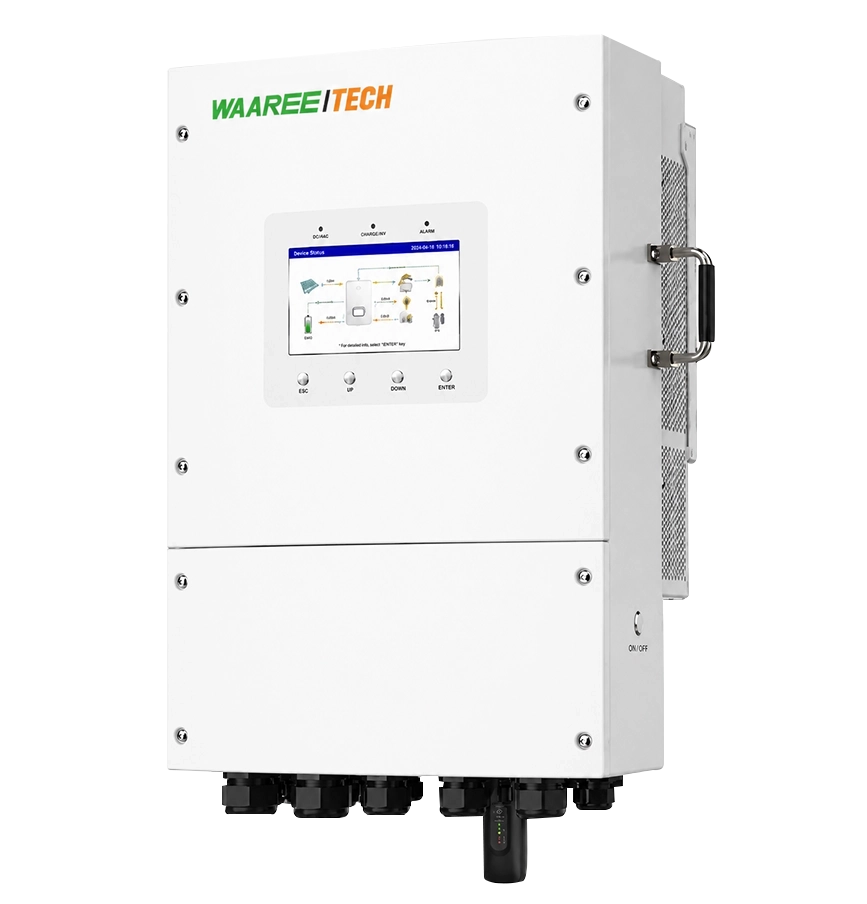

Single-Phase Energy Storage Inverter: Smart Control

IP66 protection for harsh weather, ensuring load stability regardless of a weak grid or generator.

Technical Specifications

Supports both Li-ion and Lead-acid batteries with a safe low-voltage range of 40V to 60V, offering maximum flexibility.

  • Seamless transitions with automatic switchover time of <4 ms.
  • 200% overload capability for 10s to handle high surge loads.
  • Supports dual backup ports for intelligent control of critical loads.
  • Generator-compatible to extend backup duration during power outages.
  • Superior IP66 ingress protection for reliable outdoor installation.
  • Multiple inverters can operate together to form a home microgrid.
Wide MPPT Range

Wide MPPT Range

Ensures maximum power harvest even on complex roof layouts with a 90-435 V MPPT range.

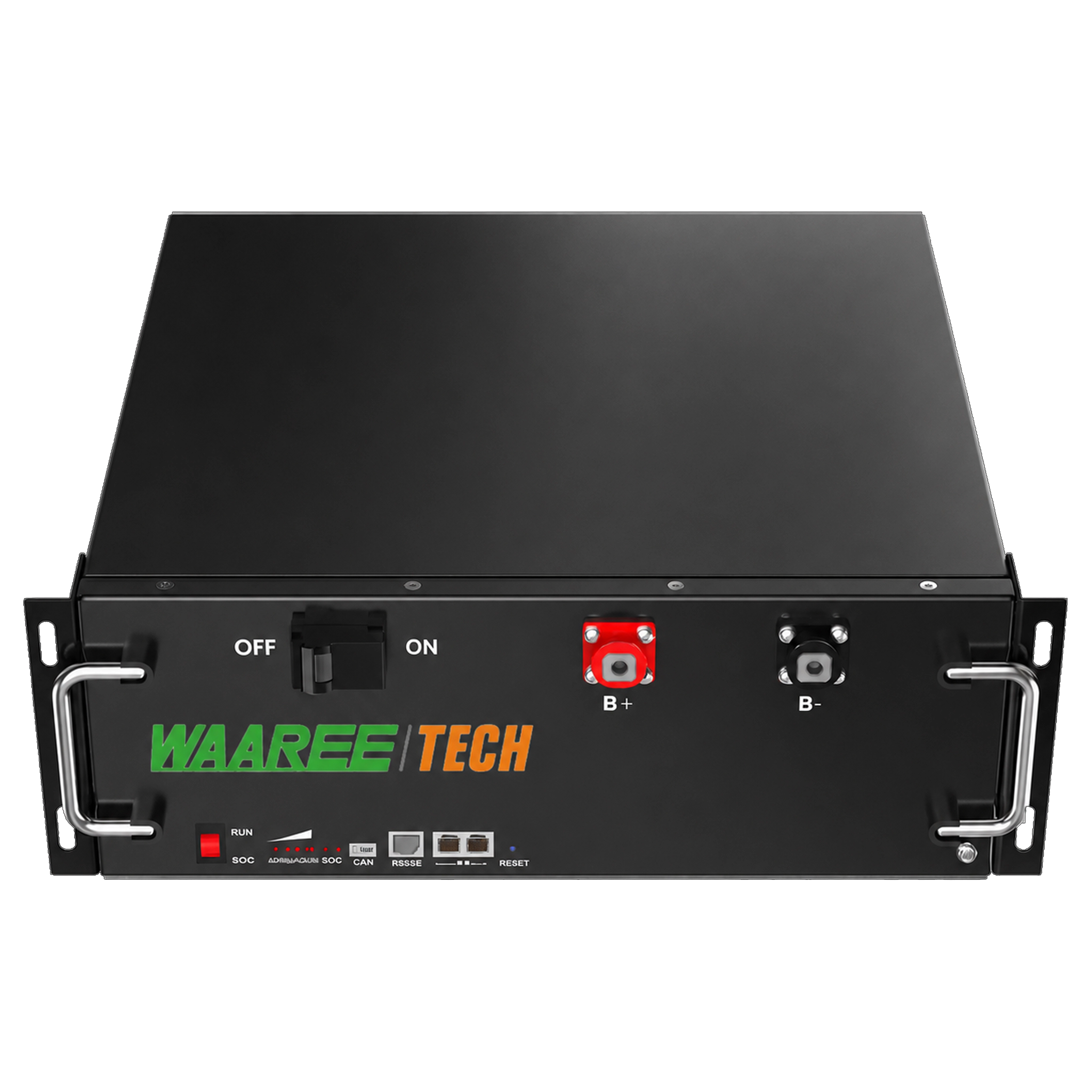

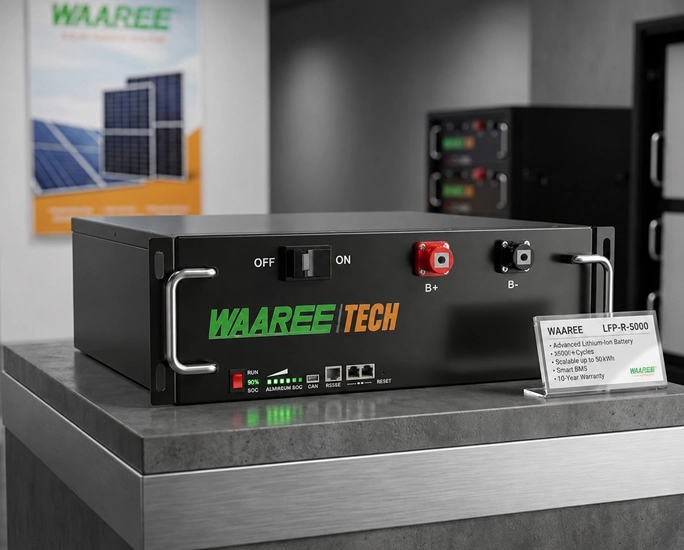

Flexible Battery Types

Flexible Battery Types

Compatible with Li-ion and traditional Lead-acid batteries for flexible energy storage options.

High System Efficiency

High System Efficiency

Achieve maximum efficiency of 96.2%, converting more solar energy for your home use.

Remote Monitoring

Remote Monitoring

Easily track system performance via the 7.0 LCD display, Bluetooth, and the mobile APP.

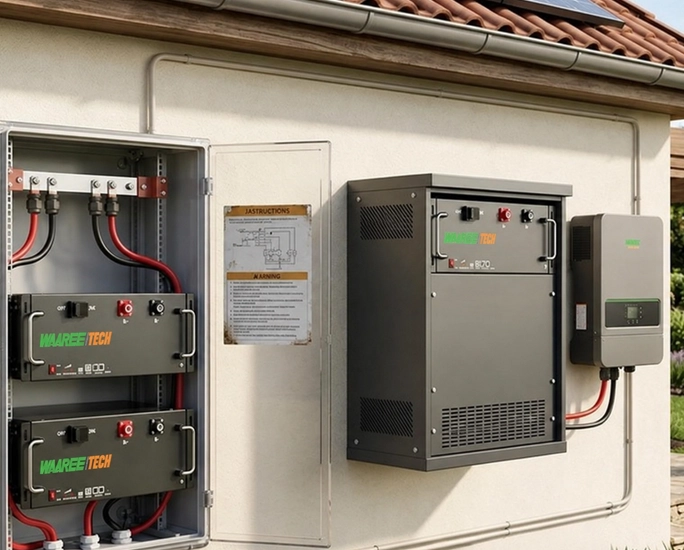

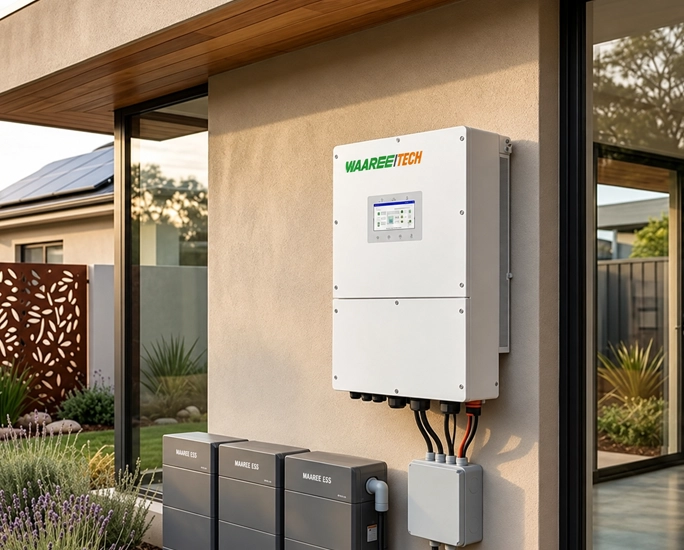

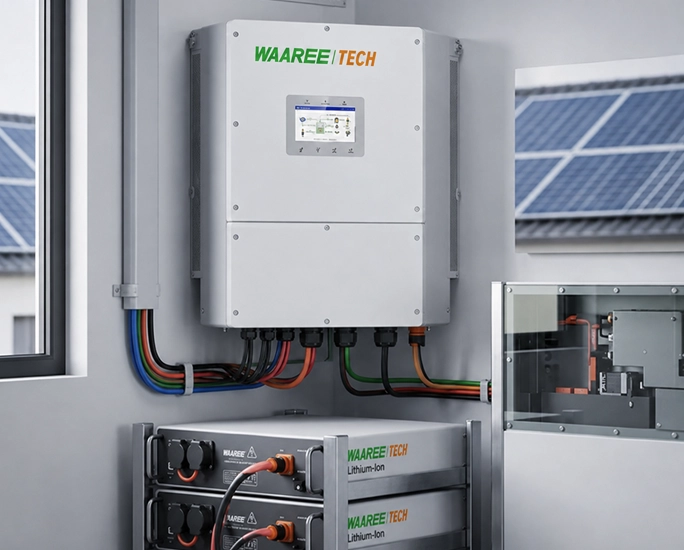

Applications and Use Cases

Optimize your home's energy flow. The ESS provides guaranteed power security, allowing you to maximize self-consumption and engage in time-of-use tariff arbitrage for maximum savings.

Learn More

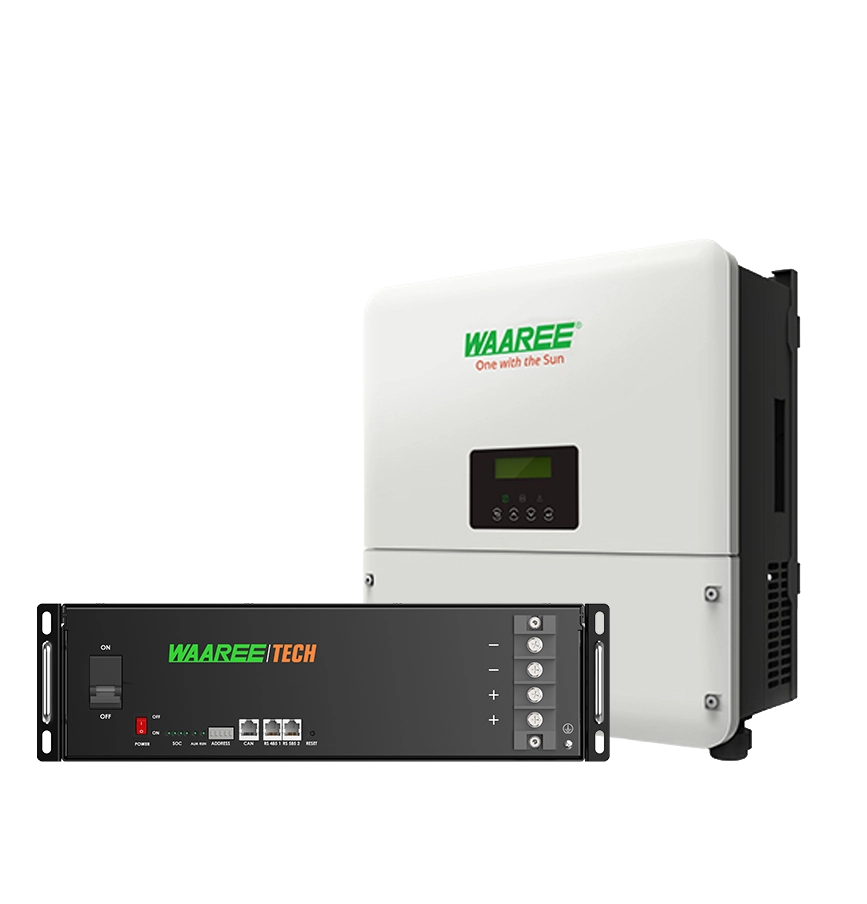

Technical Specifications

Provides excellent power stability and grid interaction, adhering to multiple global grid standards.

  • Max. recommended PV array size up to 16 kW (8K model).
  • Power factor >0.99 (0.8 leading – 0.8 lagging).
  • Rated grid voltage of 220V/230V at 50 Hz/60 Hz.
  • Rated voltage of 330V and starting voltage of 90V.
  • Low THDI (<2) for high power quality on the grid side.
  • Adherence to global standards like IEC/EN 62109-1/-2.
Grid Power Quality

Grid Power Quality

Low THDI (<2%) and power factor >0.99 ensure high-quality power injection into the grid.

Integrated Safety

Integrated Safety

Built-in ground fault monitoring and residual current detection for maximum household safety.

PV Oversizing

PV Oversizing

Supports up to 16 kW (8K model) of PV input power, allowing for maximum array oversizing.

Non-Isolated Topology

Non-Isolated Topology

Utilises a non-isolated topology for simplified design and higher efficiency in power conversion.

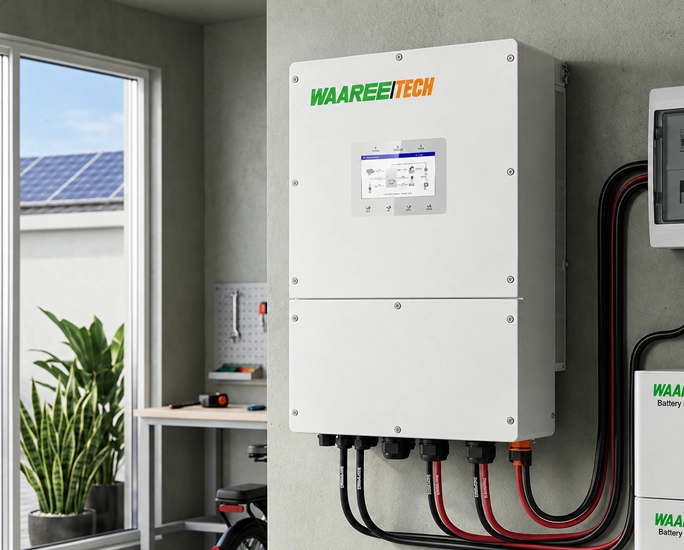

Applications and Use Cases

The Hybrid Inverter is the smart brain of your system, ensuring high-efficiency power conversion, seamless solar-to-battery integration, and adherence to strict grid standards.
